STANDARD FEATURES
|
Lightweight Concrere Screed Truss ADVANTAGES
|

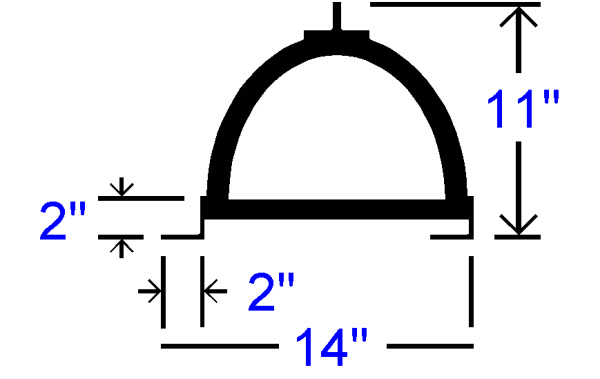

FEATHERWEIGHT "PARABOLIC " FRAME DESIGN
|
Light and durable steel frame combined with aluminum backbone and blades to provide easy cleaning and maintenance. Frames are easily replaced if damaged. Designed for small slabs and easy transport. |
DIRECT CONTROLLED VIBRATION
|
Strategically located eccentric weights supply even, deep and high frequency vibrations that penetrate directly into the concrete. |
VARIABLE WIDTH
|
Machine quickly adjusts to variable width pours in easy to assemble 5' (1.5m) and 10' (3.0m) sections.
|
TURNBUCKLE & CROWN CONTROL
|
Split turnbuckles provide easy assembly and fast, positive adjustment for all types of surfaces: flat, parabolic and inverted.
|
ONE-SIDE WINCHING
|
One-man operation.
|
LIFT HANDLES
|
Swing-down handles permit easy maneuvering and transport.
|
POWER PACKAGE
|
5 h.p. Honda engine, equipped with a centrifugal clutch is easily mounted on any 5 ft. section.
|
