Metal Concrete Forms for flatwork

Save Time...Save Labor...Save Lumber

Preferred by leading contractors for over 100 years, Metaforms® offer a wide range of adaptability plus many time and labor saving features. Steel flatwork concrete forms are used by concrete contractors for the following applications: driveways, sidewalks, patios, parking lots, commercial floors, and lightweight paving. In comparison with wood forms, Metaforms® not only greatly reduce setting and stripping costs and completely eliminate costly, recurring lumber bills, but they represent an investment in equipment which will give many years of rugged, dependable service.



Steel Flatwork Concrete Forms: Slim-line®, Base-line™, Heltzel Style and flexible radius paving forms.


slim Line Logo

Slim-Line® Paving Form Features

Made of 12 gauge steel; Streamlined design permits easy handling and efficient transport.
Heights: 4" to 14"
Base: 2"
Top Tread: 2"
Stake Pockets: V-type
End Connection: Bullnose

Slim-Line Concrete Forms

Slim-Line concrete forms are ideally suited for many different jobs including sidewalks, driveways and roads. A slim, 2-inch wide construction allows you to stack and transport more forms on your rack or in your truck bed. Slim-Line concrete forms are easy to set up, easy to use and easy to clean up and take down. The forms’ lightweight composition saves labor and your wear and tear on workers’ backs. The forms’ durability saves your budget as you reuse your concrete forms again and again. Available in heights from four to fourteen inches.

steel flatwork form for sidewalk paving

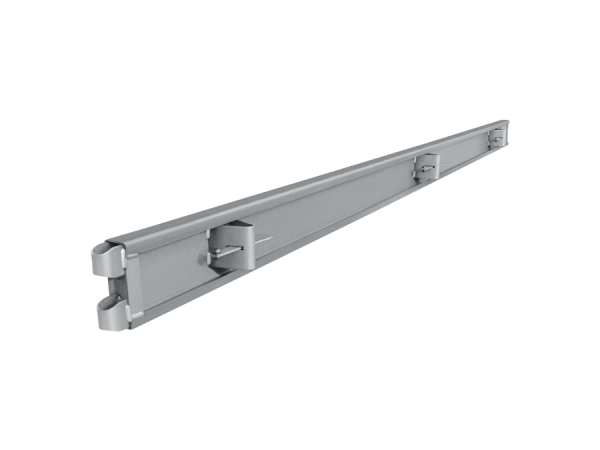

4" Slim-line, 3 pocket sidewalk form

part #404-002


Base Line Logo

Base-lineTM Paving Forms Features

Made of 10 gauge steel; Heavy-duty design ensures rugged performance and long life.
Heights: 4" to 24"
Base: 4"
Top Tread: 2"
Stake Pockets: Box-Type
End Connection: Full-Height Bent Plate

Base-Line Concrete Forms

Base-Line concrete forms are heavy duty and designed for maximum durability. These concrete forms are tough and dependable over time. Base-Line concrete forms are expertly engineered to resist wear, rust, cracking or warping. A four inch wide base adds support and stability for on-grade forming applications. With Base-Line concrete forms you’ll be able to create an incredible variety of complex slaps with multiple steps and elevations.

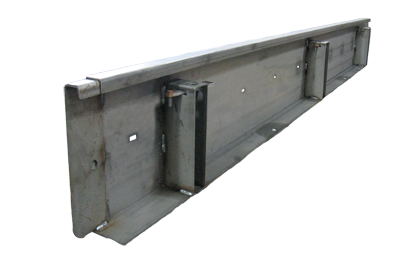

Heavy duty concrete flatwork form

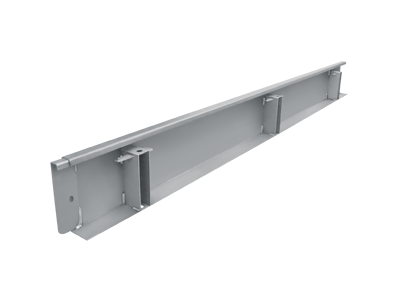

12" Base-line Form with three box style pockets

part #312-001

Steel Flatwork Concrete Forms Options:

  • Special Punching: Hole punching can specified in the face, base, or top tread.
  • Sliding End Connection: Sliding end connections permit forms to be stripped over dowel bars.
  • Steel Thickness: forms can be made of alternative gauges of steel.
  • Keyway Form: Is quickly and easily attached to Metaforms® to provide a "tongue and groove" joint between adjacent sections of flatwork. Keyway form is conveniently attached by bolting through holes in face of forms.

Flexible Radius Concrete Form Logo

Flexible Radius Paving Forms Features

Made of 12 gauge steel; Provides a convenient method of forming all types of curved and radius work.
Heights: 4" to 24"
Stake Pockets: Six V-type
End Connections: Removable Hinge Style

Felexible Radius Concrete Forms

Flexible Radius Concrete Forms are perfect for sidewalks, driveways and other types of paving work.  Simply stake the concrete form into the desired position before beginning your pour using the stake pockets and hinge-style stake pocket end connections. Flexible steel concrete forms conserve your budget and the environment with incredible potential for repeated usage. Flexible Radius Concrete Forms are available in heights from 4 inches to 24 inches tall.

   steel flexible concrete form                     flex connection concrete forms                   concrete form end connection

6" steel flexible radius concrete form used for flatwork applications

part #106-001

Exclusive "hinge style" end conections




Heltzel Style Flatwork Concrete Forms

Metal Forms straight flatwork Heltzel style concrete forms are available with the option of 2 inch or 3 inch top and bottom rails. The Heltzel concrete forms are engineered to match and interchange with older versions of Heltzel flatwork forms. Heltzel type curb forms are 10' long, unless otherwise indicated. Curb heights range from 4 inch up to 24 inch high. Typical applications for Heltzel style forms include curb and gutter, sidewalks, driveways, patios and footings.



                  Heltzel concrete forms
