Metal Concrete Paving Forms

Matching Forms to Pavements: A job for Experts

MFC has the experience and reputation for designing and manufacturing the right paving form for all types of concrete paving applications. Our customer service team has more than 150 years of experience in the concrete paving form industry. We manufacture highway paving forms, airport paving forms, street paving forms and other form related paving projects throughout the world.

View our full selection of Concrete Paving Form products.

Contact the experienced MFC staff for concrete paving form advice and quotations.

Concrete Paving Forms are used by concrete contractors for the following applications.

• Streets, Highways, Airports and Interstate Paving Projects
• FAA and Corps of Engineers paving projects
• Large commercial flatwork projects

Concrete Paving Form Products

Styles and Features of Metal Forms Concrete Paving Forms

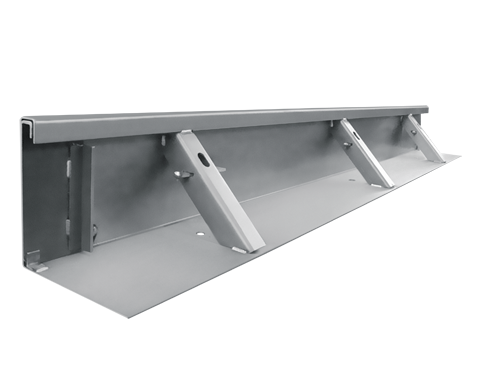

1/4 Inch: Meets strict paving specifications and supports heavy-duty paving equipment. 3/16 Inch: Supports deck finishers, roller screeds and lightweight paving equipment	Meta Pave: For Pouring One Slab Thickness Stake pockets: (3) Channel design End connections(1): Sliding design Height: Up to 28" Base: Same as height (or less) Strength: ¼" or 3/16" steel       •  Standard 10' Lengths       •   Part #5**-900, ex:512-900= 12" paving form

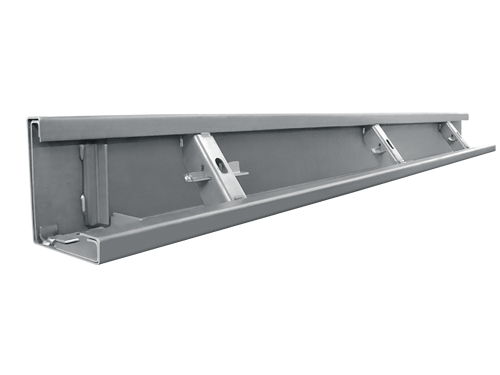

1/4 Inch: Meets strict paving specifications and supports heavy-duty paving equipment. 3/16 Inch: Supports deck finishers, roller screeds and lightweight paving equipment	Meta Pave IITM: For pouring two slab thickness' "Dual Duty" Stake pockets: (3) Channel design       •   Dual Duty: 2 for 1 form End connections(2): Sliding design Height/Base: Reversible Strength: ¼" or 3/16" steel Standard 10' Lengths Part #500-900 for all dual paving forms

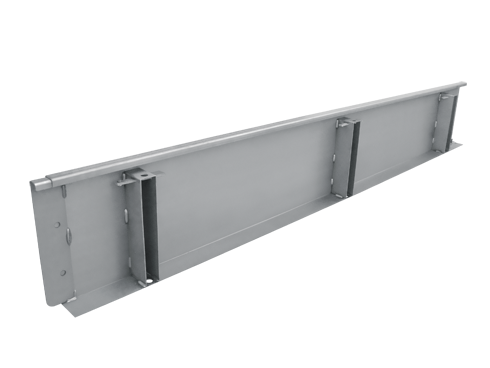

3/16 Inch: Supports deck finishers, roller screeds and lightweight paving equipment. 1/8 Inch: Supports lightweight screeding and finishing equipment.	Base-LineTM: Usually modified from standard configuration to accommodate lightweight finishing equipment Stake pockets (3): Box design End connections(1): Fixed design Height: Up to 24" Base: 4" to 8" Strength: 3/16" or 1/8" steel       •   Standard 10' Lengths       •   Part#3**-900, ex: 312-900 for 12" high

3 strengths

• ¼" steel: Meets strict paving specifications and supports heavy-duty paving equipment

• 3/16" steel: Supports deck finishers, roller screeds and lightweight paving equipment

• 1/8" steel: Supports lightweight screeding and finishing equipment

Top Tread and Turned-Down Flange

• Top tread is 2" unless specified

• 2" turned-down flange should be maintained to allow for stake clearance and possible wheel flanges on finishing equipment

• Turned-down flange is 2" typical unless modified to accommodate stake pockets restrictions

Paving Form Options:

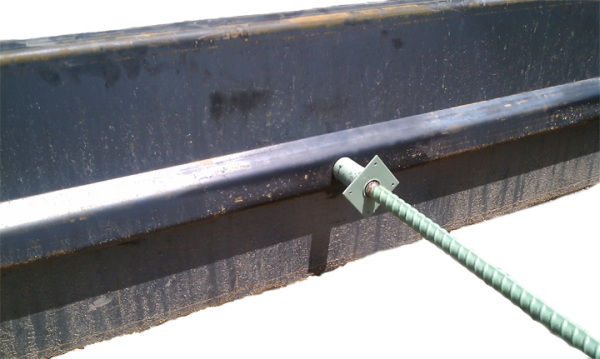

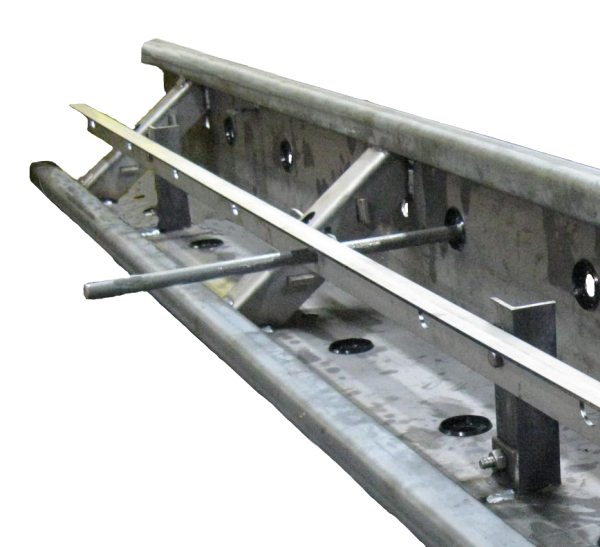

•   Dowel Bar Support Assemblies	•    Keyway Attachment

• Reinforcing Gussets
• Turned-up base Flange
• Double Wedge Stake Pockets
• Extra Stake Pockets
• Dowel Bar Punching
• Riser Form Attachment

Click here to read successful paving form job stories
